Segway Dirt eBike X260

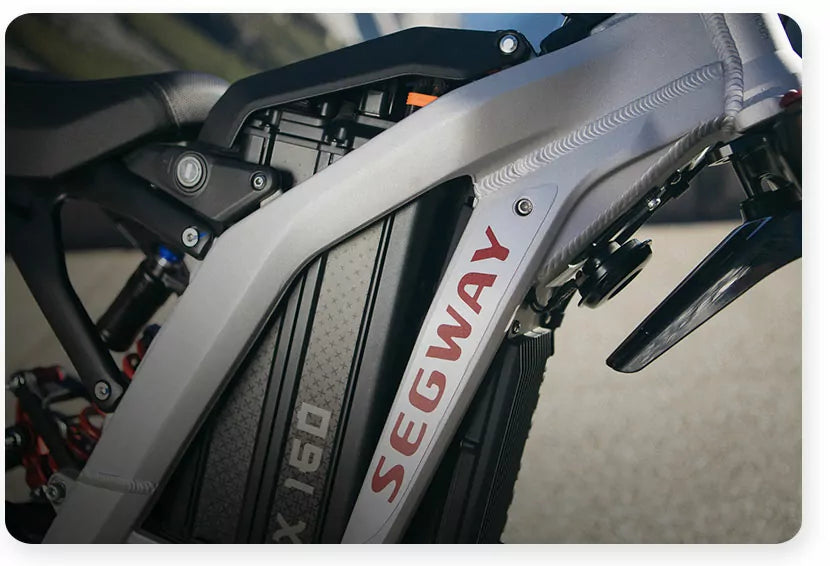

Fast-Charge, Long Lasting Battery Capacity
The fast-charge battery takes only 4 hours for a full charge and delivers up to 74.6 miles range in one single charge (in EP mode). A spare swappable battery will take your adventure even farther.
Performance Dirt eBike for All
The Segway Dirt eBike’s superior performance in a compact body makes it possible for new riders to dive into exciting off-road adventures.
Conquer the Toughest Terrains
With an IP67 grade waterproof rating and an aluminum alloy body with heat dissipation, this eBike can conquer many off-road terrains. The
Field Oriented Controls stabilize and adapt to your riding habits.

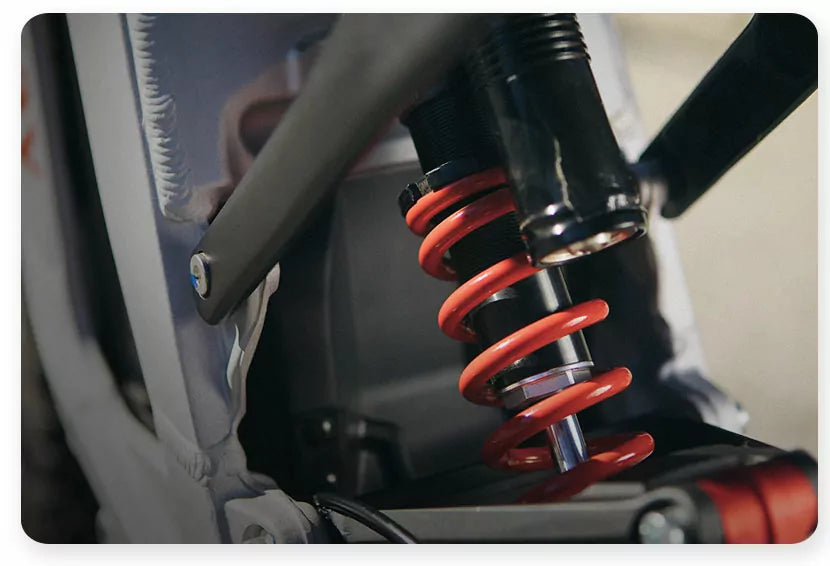

Unleash in Seconds
Unleash your full capacity with a peak torque of 23.6 ft*lb with a maximum of 5400 rpm that operates up to 356°F. Acceleration offers 0 to 31 mph in only 4.02 seconds.
Endless Possibilities
Universal parts make modifications and DIY easy for riders to create their ideal e-bike.
Specifications
basic information
Vehicle Dimensions: Length x Width x Height: 74.2 x 30.7 x 41.3 inch (1885 x 780 x 1050 mm)
Net Weight: 97.0 /121.3 lbs (44/55 kg)
Max. Load: 220.5 lbs (100 kg)
Rider Age: 18-55 yrs.
battery
Battery type: Lithium battery
Charging Time: 3-4h
Capacity: 32 Ah
Rated Voltage: 60 V
Nominal Power: 3 kW
Overcurrent Protection Value: 100 A
charger
Nominal Power: 700 W
Charger Input Voltage: 100-240 V 50-60 HZ
Charger Output Voltage/ Power: 67.2 V/10 A
Charger Model: NB-67D2-10DO
other
Gear Type: Aluminum alloy 19*1.4
Tire Type: 70/100-19 off-road tire
Wheel Diameter: 19 inch
Handlebar Grip Material: Silicone rubber
Front Shock Absorber System: Double-shoulder inverted front fork (adjustable)
Rear Shock Absorber System: Multi-link hydraulic spring central type
Rear Shock Absorber Range: 3.3 inch (85 mm adjustable)
Brake System: Disc brake
Primary Drive System: HTD 8M belt 22.0 inch (560 mm)
Secondary Drive System: 420 chain with 106 sections
vehicle parameters
Wheelbase: 49.8 inch (1265 mm)
Minimum Clearance: 10.6 inch (270 mm)
Max. Climbing: 45° slope
Max. Speed: 46.6 mph (75 km/h)
Range: 74.6 mile (120 km)
Seat Height: 31.9 inch (810 mm)
Power System: High speed brushless DC motor
Max. Motor Power: 5 kW
Max. Torque for Drive Wheel: 184.3ft*lb (250 N*m)
IP Rating: Battery IP65; Controller IP67
Vehicle Material: Forged Aluminum Alloy
