Segway eMoped C80

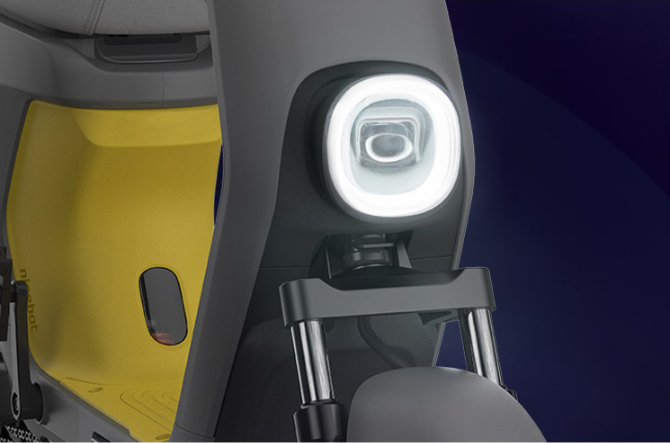

Halo-Shaped Headlight
The eMoped C80 LED front halo-shaped headlight consists of an inner and outer ring light. Starting at dusk, the headlight will activate, and brightness will adjust automatically based on an ambient light sensor.

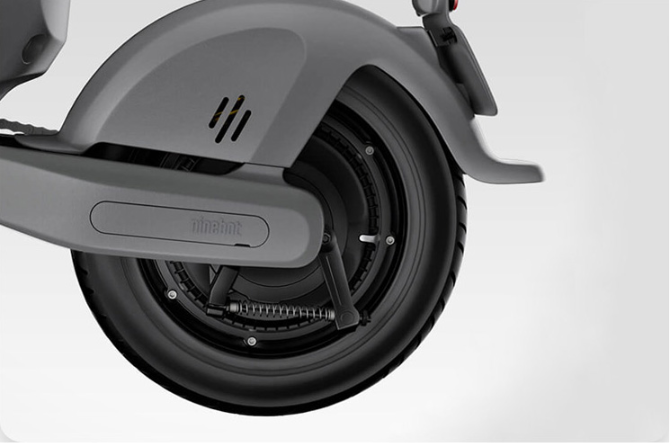

Regenerative Anti-lock Braking System
The front disc brake is paired with a rear drum brake to ensure fast and stable braking. The EABS System recoups energy to the battery to extend range and take you farther.

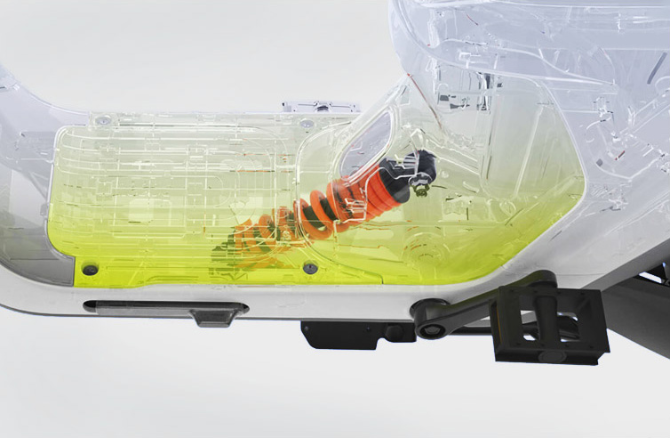

Two-stage Central Shock Absorber
A small window below the seat provides a peek at the two-stage central shock absorber, which is ready to tackle the bumps on your way and deliver a smooth ride.
Specifications
battery
Battery Type: Lithium-ion battery
Rated Capacity: 24 Ah
Rated Energy: 1152 Wh
Charging Time: About 7 hours
Nominal Voltage: 48V
charger
Input Voltage: 100-240 V AC
Charger Output voltage: 55.6 V DC
Output Current: 4A
motor
Motor Type: Permanent magnet motor
Peak Motor Power: Close to, but less than 750 W
Nominal Motor Power: Approx. 600 W
Rated Rotating Speed: 350 r/min
motor controller
Undervoltage Protection Value: 42 V
Overcurrent Protection Value: 30 A
other
Tire: 14 x 2.50 vacuum tire (with circular reflector)
Shock Absorption: Centered twin-tube dampers
Front Brake: Disc brake
Rear Brake: Drum brake + energy recovery brake/EABS
Handle Grip Material: PVC
vehicle parameters
Vehicle dimensions: Length x Width x Height: 62.6 x 28.3 x 40.0 in (1589 x 720 x 1016 mm)
Net weight: 121.3 lbs (55.0 kg)
Nominal Payload: 165 lbs (75 kg)
Max. Load: 220 lbs (100 kg)
Rider Age: > 16 years old
Wheelbase: 45.3 in (1150 mm)
Ground Clearance: 5.1 in (130 mm)
Max. Speed: Close to, but less than 20 mph (32 km/h)
Typical Range: 47 mi (75 km)
Power Consumption per 100 km: 1.6 kWh
Traversable Terrain: Paved road
Operating Temperature: 0-133°F (-18-45°C)
Storage Temperature: -4-122°F (-20-50°C); 50-86°F (10-30°C) recommended
Charging Temperature: 36-104°F (2-40°C); 50-95°F (10-35°C) recommended
IP Ratings: Vehicle: IPX5; Battery pack: IP67
